Snippets Library

The Snippets Library provides reusable code templates and patterns for common LogicMonitor scripting tasks.

Accessing Snippets

Method	Action
Sidebar	Click Snippets tab in the right sidebar
Keyboard Shortcut	Press Ctrl+K, L / Cmd+K, L to open directly
Command Palette	Press Cmd+Shift+P and type “Snippets”

---

Snippet Types

Templates

Complete script starters that replace your entire script content.

Use templates when:

• Starting a new script from scratch
• Learning standard script patterns
• Need a complete working example

Caution

Inserting a template replaces your current script content. A confirmation dialog appears.

Patterns

Code fragments that insert at your cursor position.

Use patterns when:

• Adding functionality to an existing script
• Inserting common boilerplate code
• Using standard coding patterns

Patterns are inserted without replacing existing content.

---

Snippet Categories

By Type

Badge	Description
Template	Complete script starters that replace your entire script
Pattern	Code fragments that insert at cursor position

By Language

Snippets are language-specific:

• Groovy snippets for Groovy scripts
• PowerShell snippets for PowerShell scripts

Use the filter to show only relevant snippets for your current language.

By Source

Badge	Description
Built-in	Included with LMDA Composer
User	Your custom snippets

---

Using Built-in Snippets

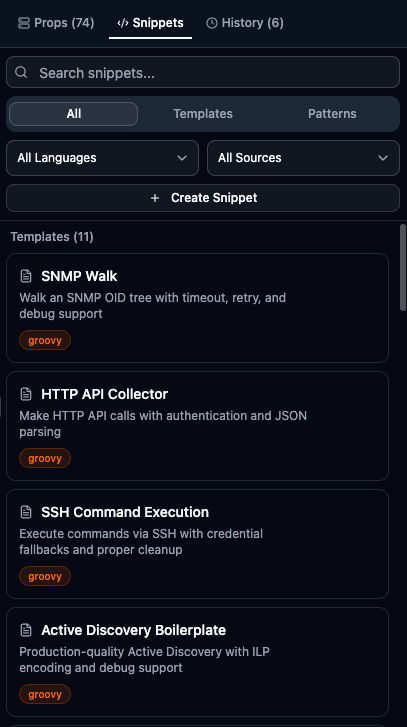

1. Open the Snippets panel from the sidebar

2. Use filters to narrow by category, language, or type

3. Click a snippet to preview its full content

4. Click Insert to add the snippet to your editor

---

Popular Built-in Snippets

Groovy Templates

Name	Description
SNMP Walk	Walk an SNMP OID tree and process results
HTTP API Collector	Make HTTP API calls and parse JSON response
WMI Query Template	Execute WMI queries on Windows devices
SSH Command Executor	Run commands via SSH and collect output

Groovy Patterns

Name	Description
SNMP Get Single	Get a single SNMP OID value
JSON Response Parser	Parse JSON and extract values
Try-Catch Block	Error handling wrapper
AD Instance Line	Format Active Discovery output
Collection Output	Format key=value collection output

PowerShell

Name	Description
WMI Query	Execute WMI queries
Registry Read	Read Windows registry values
Service Status	Check Windows service status
Performance Counter	Read performance counters

---

Creating Custom Snippets

1. Click Create Snippet in the panel

2. Fill in required fields:

   • Name: Unique identifier
   • Category: Organization category
   • Language: Groovy or PowerShell
   • Type: Template or Pattern
   • Content: The actual code

3. Optionally add description and tags

4. Click Save

Example Pattern

// SNMP Walk Pattern
// TODO: Set target OID
def baseOid = "1.3.6.1.2.1.2.2.1"
def host = hostProps.get("system.hostname")
def community = hostProps.get("snmp.community")

def results = Snmp.walk(host, community, baseOid)
results.each { oid, value ->
    println "${oid} = ${value}"
}

---

Managing Custom Snippets

Action	Description
Edit	Click the edit icon on your snippet, modify details, and save
Delete	Click the delete icon and confirm. Deleted snippets cannot be recovered.

Storage

Custom snippets are stored in browser local storage. They persist across sessions but are not synced between browsers/devices.

---

Snippet Organization

Naming Conventions

Use clear, descriptive names:

• SNMP_Walk_Interface_Stats
• HTTP_GET_With_Auth
• WMI_CPU_Query

Tags

Add relevant tags for searchability:

• Technology: snmp, wmi, http
• Purpose: discovery, collection
• Module type: datasource, configsource

---

Best Practices

• Create for Repeated Code — If you write similar code often, generalize it with placeholders and save as a snippet
• Maintain Your Library — Periodically review, update outdated snippets, and remove unused ones
• Document Your Snippets — Include what it does, required variables, expected output, and limitations
• Use TODO Markers — Add // TODO: comments where users need to customize the code

---

Snippet Workflow Example

Building a new DataSource:

1. Start with Basic DataSource template

2. Add SNMP Walk pattern for discovery

3. Add Instance Output pattern for AD formatting

4. Add SNMP Get pattern for collection

5. Customize for your specific use case

---

Next Steps

Execution History Review past script executions and reload scripts.
