Module Snippets

Module Snippets are LogicMonitor’s library of reusable Groovy code modules. These modules provide helper functions for common tasks like data emission, debugging, API calls, and vendor-specific integrations.

Accessing Module Snippets

Method	Action
Keyboard Shortcut	Press `Ctrl`+`K`, `L` / `Cmd`+`K`, `L` to open directly
Command Palette	Press `Cmd`+`Shift`+`P` and type “Module Snippets”

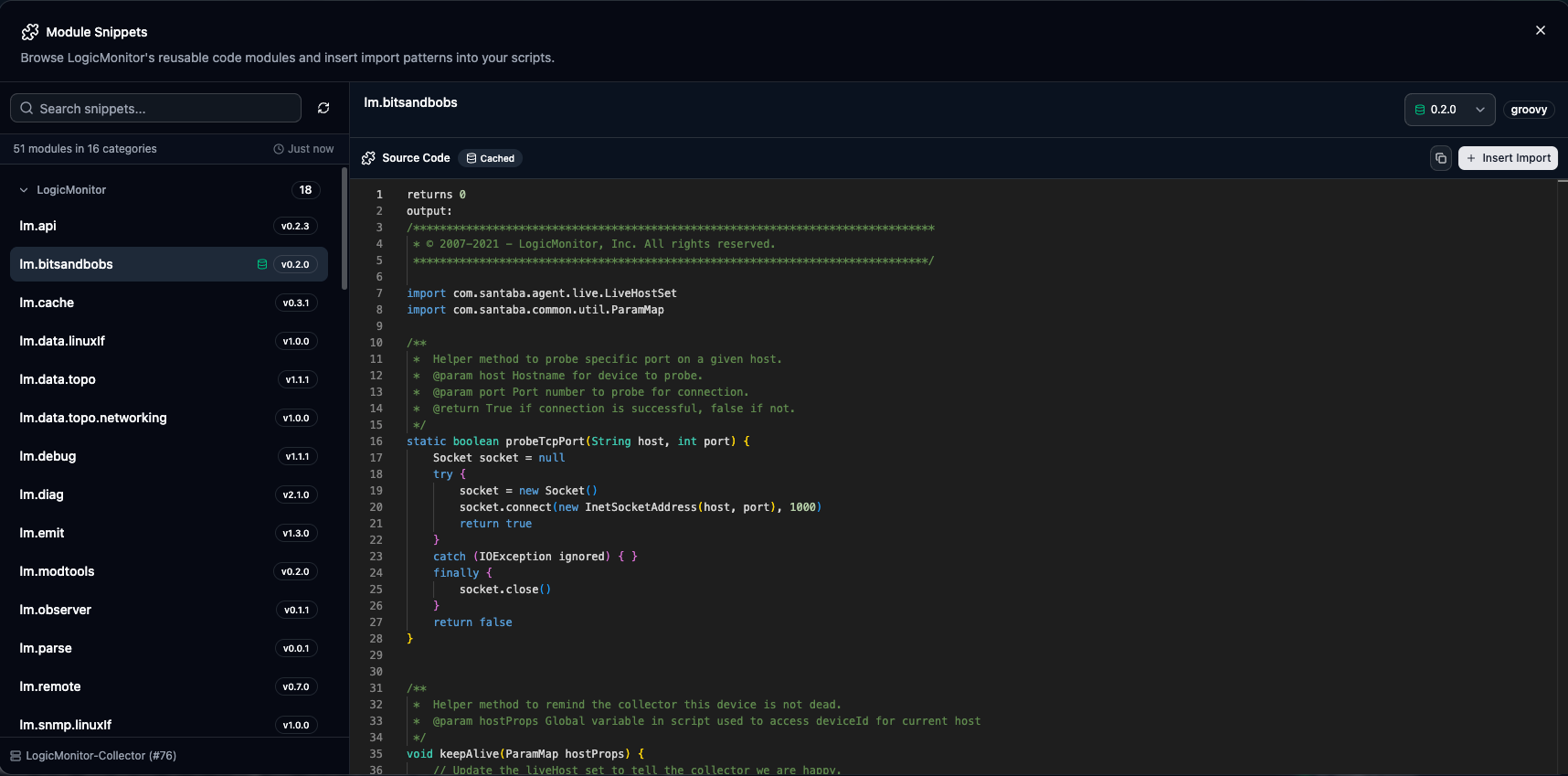

Module Snippets dialog showing categorized modules and source preview

How It Works

Module Snippets are fetched from your portal via a connected collector. The dialog displays all available modules grouped by category with full source code preview.

Open the Module Snippets dialog
Click Fetch Module Snippets to retrieve the list from your collector (first time only)
Browse categories or search for a specific module
Select a module to preview its full source code
Choose a version if multiple are available
Click Insert Import to add the loader boilerplate to your script

Module Categories

Modules are organized by vendor and functionality:

Category	Examples	Description
LogicMonitor	`lm.emit`, `lm.debug`, `lm.cache`	Core LM helpers for data emission, debugging, and caching
Cisco	`cisco.meraki`, `cisco.aci`	Cisco Meraki, ACI, and network device integrations
VMware	`vmware.vsphere`	vSphere, vCenter, and virtualization helpers
Aruba	`aruba.*`	Aruba network device integrations
Palo Alto	`paloalto.*`	Firewall and security integrations
NetApp	`netapp.*`	Storage system integrations
Juniper	`juniper.*`	Network device integrations
Protocols	`proto.http`, `proto.snmp`	Protocol-specific helpers
Loader	`loader.*`	Module loading utilities

The Import Boilerplate

When you click Insert Import, LMDA Composer inserts the proper module loader boilerplate at your cursor position. This is the standard pattern for loading LogicMonitor modules:

/*******************************************************************************
 * Module Snippet: lm.emit
 ******************************************************************************/
import com.logicmonitor.common.sse.utils.GroovyScriptHelper as GSH
import com.logicmonitor.mod.Snippets

def modLoader = GSH.getInstance()._getScript("Snippets", Snippets.getLoader()).withBinding(getBinding())
def emit = modLoader.load("lm.emit", "1")

Understanding the Import

Component	Purpose
`GroovyScriptHelper`	LogicMonitor’s script execution helper
`Snippets.getLoader()`	Retrieves the module loader from the collector
`withBinding(getBinding())`	Passes the current script context to the module
`modLoader.load(name, version)`	Loads the specified module at the given major version

Variable Naming

The variable name is automatically derived from the module name:

Module Name	Variable
`lm.emit`	`emit`
`cisco.meraki`	`meraki`
`proto.http`	`http`
`lm.data.topo`	`topo`

Version Management

Each module can have multiple versions available:

Feature	Description
Latest Version	Shown by default with a latest badge. Recommended for new scripts.
Version Selector	Use the dropdown to select older versions for compatibility with existing scripts.
Major Versions	The import uses the major version number only (e.g., `"1"` for version `1.3.0`).

Source Code Preview

The right panel shows the complete source code of the selected module:

Full syntax highlighting with Groovy support
Copy button to copy the entire source to clipboard
Read-only editor for browsing and searching within the code
Version indicator showing which version you’re viewing

Caching

Module Snippets uses intelligent caching to minimize collector requests:

Cache Type	Behavior
Module List	Cached after first fetch. Shows collector name and timestamp.
Source Code	Cached per module+version when viewed. Shows green database icon.

Cache Indicators

Green database icon on a module = at least one version’s source is cached
Green database icon on version = that specific version is cached locally
Timestamp in footer shows when the list was last fetched

Refreshing

Click the Refresh button next to the search box to fetch an updated module list from the collector. This is useful if new modules have been added to your portal.

Using Loaded Modules

Once a module is loaded, you can call its methods. Each module has its own API—preview the source to see available functions.

Example: Using lm.emit

// After loading the emit module
def emit = modLoader.load("lm.emit", "1")

// Use the emit helper to output datapoints
emit.dataPoint("cpuUsage", 75.5)
emit.dataPoint("memoryUsage", 82.3)

Example: Using cisco.meraki

// After loading the meraki module
def meraki = modLoader.load("cisco.meraki", "1")

// Use Meraki API helpers
def orgs = meraki.getOrganizations(apiKey)
orgs.each { org ->
    println "Organization: ${org.name}"
}

Best Practices

Use Latest Versions — Start with the latest version unless you need specific compatibility with existing scripts
Review Source First — Preview the module source to understand its API before importing
One Loader Per Script — The modLoader setup only needs to be included once per script, even if loading multiple modules
Check Module Updates — Periodically refresh the module list to see if newer versions are available

Loading Multiple Modules

If you need multiple modules, include the loader setup once and call load() multiple times:

/*******************************************************************************
 * Module Snippets
 ******************************************************************************/
import com.logicmonitor.common.sse.utils.GroovyScriptHelper as GSH
import com.logicmonitor.mod.Snippets

def modLoader = GSH.getInstance()._getScript("Snippets", Snippets.getLoader()).withBinding(getBinding())
def emit = modLoader.load("lm.emit", "1")
def http = modLoader.load("proto.http", "1")
def cache = modLoader.load("lm.cache", "1")

// Now use all three modules in your script

Next Steps

Snippets Library Use built-in and custom local code snippets.
