AppliesTo Toolbox

The AppliesTo Toolbox helps you build and test AppliesTo expressions before applying them to LogicModules. See exactly which resources match your expression.

Opening the Toolbox

Method	Action
Welcome Screen	Click AppliesTo Toolbox on the welcome screen
Keyboard Shortcut	Press Cmd+K, A to open directly
Module Details	Click the AppliesTo field when editing module details

---

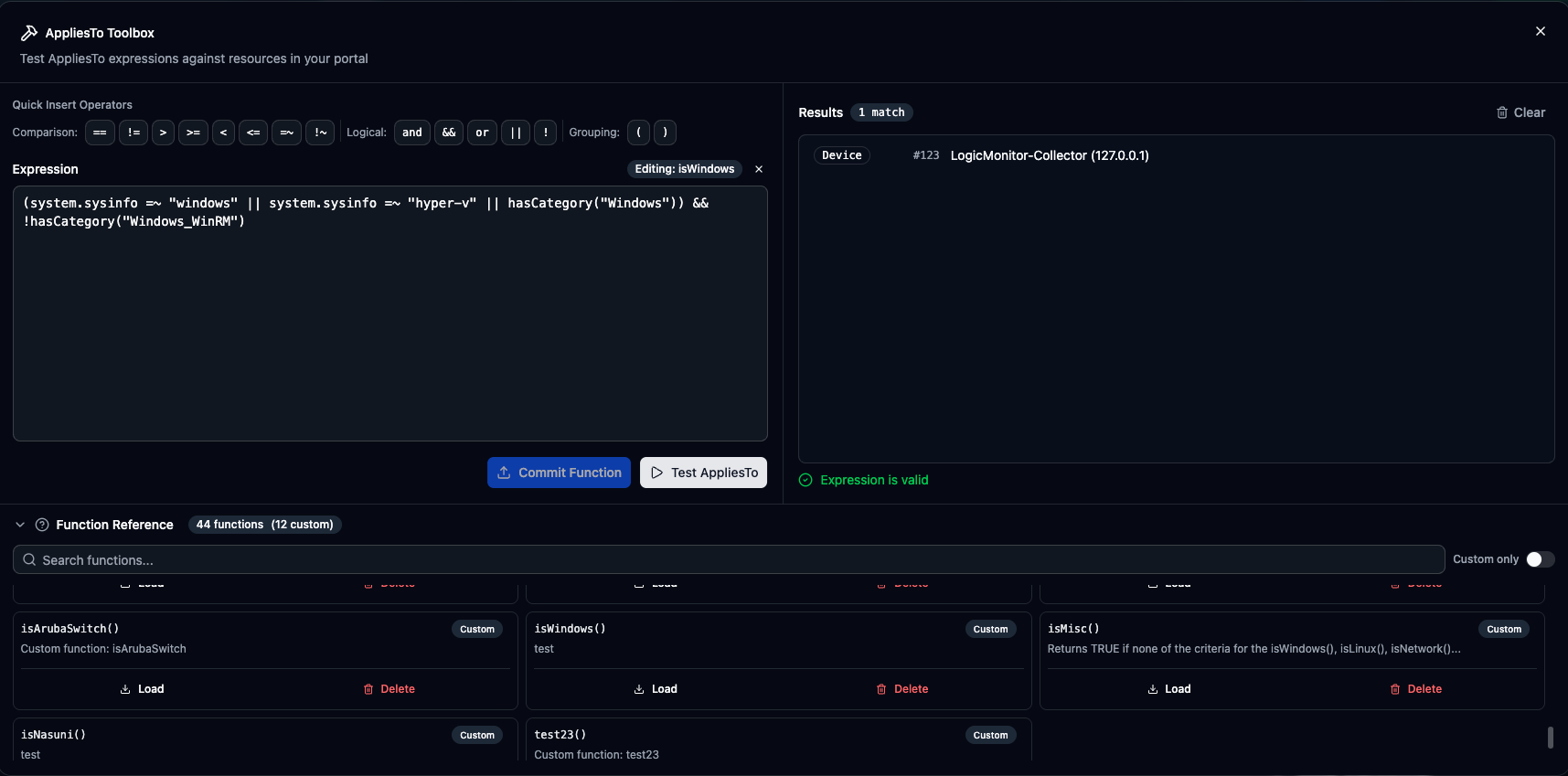

Interface Overview

Expression Editor

The main text area for writing AppliesTo expressions:

• Multi-line support for complex expressions
• Parenthesis matching and highlighting
• Real-time syntax hints
• Undo/redo support

Quick Insert Bar

Buttons for common operators:

&&||!( )==!==~!~>>=<<=

Operator	Usage
&& or and	Logical AND — both conditions must match
|| or or	Logical OR — either condition matches
! or not	Logical NOT — negates the condition
()	Grouping — control operator precedence
==	Equals — exact value match
!=	Not equals — value doesn’t match
=~	Regex match — pattern matching (case insensitive)
!~	Regex not match — pattern doesn’t match
>, >=, <, <=	Comparison — numeric comparisons

Test Button

Click Test AppliesTo to evaluate the expression against all resources in your portal.

---

Building Expressions

Basic Property Match

Match devices with a specific property value:

system.displayname == "web-server-01"

Wildcard Matching

Use =~ for pattern matching with regex:

system.displayname =~ "web-.*"

Multiple Conditions

Combine with AND/OR:

// Devices that are Linux AND in Production
system.sysinfo =~ "Linux" && system.staticgroups =~ "Production"

// Devices that are either routers or switches
system.sysoid =~ "1.3.6.1.4.1.9" || system.categories =~ "switch"

Grouping

Use parentheses for complex logic:

(system.sysinfo =~ "Linux" || system.sysinfo =~ "Windows")
&& system.staticgroups =~ "Monitored"

Function Calls

Use built-in and custom functions:

hasCategory("Windows") && !hasCategory("test")

---

Function Reference

Click Function Reference to expand the available functions panel.

Built-in Functions

Functions are organized by category:

Category	Functions
Basic	true(), false()
Properties	exists(), getPropValue(), getCollectorVersion()
Categories	hasCategory()
Arrays	contains(), join()
Strings	startsWith()
Math	sum()
Device Types	isDevice(), isCollectorDevice()
Cloud Services	isAWSService(), isAzureService(), isGCPService()
Operating Systems	isWindows(), isLinux(), isUnix(), isSolaris(), isFreebsd()
Infrastructure	isNetwork(), isStorage(), isVirtualization(), isMisc()
Vendors	isCisco(), isF5(), isNetApp(), isNetscaler(), isArubaSwitch()
Features	isNetflow(), isK8sPod()

Click any function in the reference panel to see its syntax, parameters, and examples.

Custom Functions

Custom AppliesTo functions are reusable expressions defined in your portal:

// Instead of:
system.sysinfo =~ "Linux" && hasCategory("server") && system.staticgroups =~ "Production"

// Use a custom function:
isLinuxProductionServer()

Creating Custom Functions

1. Write your expression in the toolbox
2. Click Save as Function
3. Enter a function name (e.g., isLinuxProductionServer)
4. Add a description
5. Click Save

The function is saved to your LogicMonitor portal and available immediately.

Filtering Functions

Use the Show only custom toggle to filter the function list to show only your custom functions, hiding the built-in ones.

Inserting Functions

1. Find the function in the reference panel

2. Click the Insert button next to it

3. Function is added at cursor position

4. Fill in the arguments

---

Custom Functions

Managing Custom Functions

• Edit Function — Find the function → Click Load → Modify expression → Click Update Function
• Delete Function — Find the function → Click delete icon → Confirm deletion

Dependency Check

Before deleting, verify no modules depend on the function. LogicModules using a deleted function will fail to evaluate.

---

Testing Results

Results Display

After clicking Test AppliesTo, results show matching resources:

Column	Description
ID	Resource ID
Type	Device, Service, etc.
Name	Display name
Hostname	System hostname (devices only)

Match Count

The header shows total matches: “15 resources match”

Result States

State	Description
Matches Found	Resources matching your expression are listed
No Matches	Expression is valid but no resources match
Syntax Error	Expression has errors (see error display)

---

Expression Syntax Errors

Error Display

Invalid expressions show an error message:

• Red error banner
• Description of the issue
• Approximate location hint

Common Errors

Error	Cause	Fix
Unexpected token	Missing operator	Add && or || between conditions
Unclosed string	Missing quote	Close all string literals
Unknown function	Typo in function name	Check spelling in reference
Invalid regex	Bad regex pattern	Validate regex syntax

---

Autocomplete

The editor provides autocomplete suggestions:

Property Names

Start typing a property name to see suggestions:

• system. shows system properties
• auto. shows auto-properties
• Custom property prefixes

Functions

Type the start of a function name to see matching functions.

Activating Autocomplete

Autocomplete activates automatically, or press Ctrl+Space to trigger manually.

---

Best Practices

• Start Simple — Begin with a single condition. Verify it matches expected resources. Add conditions one at a time, testing after each addition.
• Use Parentheses — Complex expressions benefit from explicit grouping: (A && B) || C is clearer than A && B || C.
• Test Edge Cases — Verify resources that should match do, and resources that shouldn’t don’t. Check boundary conditions.
• Document Logic — Use the description field for custom functions to explain the logic for future reference.

---

Integration with Module Details

When editing module details:

1. Click the AppliesTo field in the module details editor

2. The toolbox opens with the current expression pre-loaded

3. Modify and test your expression

4. Save to update the module’s AppliesTo

---
