Variables & History

The API Explorer includes environment variables for reusable values, JSON path helpers to extract response data, and a history panel to review past requests.

Environment Variables

What Are Variables?

Variables let you store and reuse values across requests:

/device/devices/{{deviceId}}

Instead of hardcoding IDs, use variables that can be changed in one place.

Variable Syntax

Use double curly braces:

{{variableName}}

Variables work in:

• Endpoint paths
• Query parameter values
• Request body
• Header values

---

Managing Variables

Access variables in the right sidebar under the Variables tab:

• Add Variable — Click Add and enter key/value pair
• Edit Variable — Click the variable value to edit inline
• Delete Variable — Click the × button to remove
• Copy Syntax — Click the copy icon to copy {{variableName}} syntax

Variable Properties

Each variable has:

Property	Description
Key	Variable identifier (no spaces allowed)
Value	The substituted value

---

Example Variables

Common variables to create:

Variable	Example Value	Use Case
deviceId	12345	Target device for operations
collectorId	1	Collector reference
groupId	42	Device group operations
datasourceId	78	Module operations
startTime	1704067200	Time range start (epoch)
endTime	1704153600	Time range end (epoch)

---

Variable Substitution

When you send a request:

1. Variables are identified by {{name}} pattern

2. Values are substituted from your variable list

3. The final request uses resolved values

4. Original template is preserved for editing

Unresolved Variables

If a variable isn’t defined, the literal {{name}} is sent, which usually causes an API error. Check the Variables tab for typos.

---

JSON Path Helpers

The Helpers tab provides a quick way to save response values as variables.

How Helpers Work

After running a request, the Helpers tab shows top-level scalar fields from the response:

Field	Description
JSON Path	The path to the value (e.g., $.id, $.displayName)
Copy	Copy the JSON path to clipboard
Save	Save the value as an environment variable

Using Helpers

1. Run an API request that returns a single resource

2. Open the Helpers tab in the sidebar

3. Find the field you want to save (e.g., $.id)

4. Click Save to create a variable with that value

5. Use the variable in subsequent requests: {{id}}

Single Resource Responses

Helpers show for single-resource responses only. For list responses (with items array), use the JSON viewer to find specific values.

---

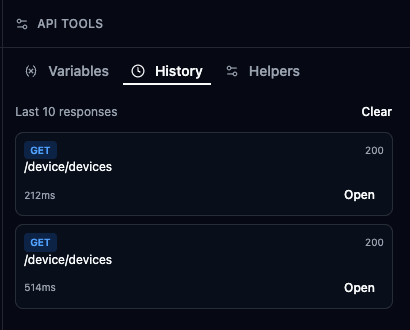

Request History

Automatic History

Every API request is saved to history:

• Request method and endpoint
• Request body (if applicable)
• Response status
• Timestamp
• Duration

Accessing History

Open the History tab in the right sidebar to see past requests. The header shows “Last N responses” where N is your configured limit.

---

History Entry Details

Each entry shows:

Field	Description
Method Badge	GET , POST , etc.
Endpoint	The API path called
Status	Response status code with color indicator
Duration	How long it took (e.g., “234ms”)

Entries have a colored left border: green for success (2xx), red for errors.

---

History Actions

Click a history entry to access actions:

Action	Result
Open in New Tab	Opens the request in a new API tab with the saved response
Copy Path	Copies the endpoint path

Reloading Past Requests

1. Find the request in history

2. Click the open button (route icon)

3. Request opens in a new tab with the saved response

4. Modify parameters if needed

5. Send again

---

History Settings

History is stored per-portal with configurable limits:

Setting	Location	Default
History Limit	Settings → API History Limit	10 requests

Configure in Settings (Ctrl+, / Cmd+,).

Clearing History

1. Click Clear at the top of the history panel
2. All history entries for the current portal are removed

---

Code Snippets

The Response Viewer’s Snippets tab generates code for the current request in multiple languages:

Language	Use Case
cURL	Command-line testing, shell scripts
Python	Automation scripts with requests library
PowerShell	Windows automation with Invoke-RestMethod
Groovy	LogicMonitor script integration

Snippets include:

• Full URL with resolved variables
• Headers (including X-version and Content-Type)
• Request body (for POST/PUT/PATCH)

---

Workflow Examples

Save & Reuse ID

Workflow for creating a resource and using its ID:

1. Create a device: POST /device/devices

2. View the response and note the id field

3. Open Helpers tab and click Save next to $.id

4. Variable id is now available

5. Use in subsequent requests: /device/devices/{{id}}

Time Range Queries

Variables for time-based queries:

Variable	Value
startTime	1704067200 (epoch timestamp)
endTime	1704153600
deviceId	12345

Request:

GET /device/devices/{{deviceId}}/devicedatasources/{{datasourceId}}/data
    ?start={{startTime}}
    &end={{endTime}}

Update time variables to query different periods.

Request Sequences

Create sequences of related requests:

1. Create device: POST /device/devices

2. Save ID: Use Helpers to save $.id as deviceId

3. Add properties: PATCH /device/devices/{{deviceId}}

4. Verify: GET /device/devices/{{deviceId}}

Each request uses the variable from the previous step.

---

Best Practices

• Variable Naming — Use clear names like targetDeviceId instead of id1. Prefix by purpose: test_deviceId, prod_deviceId.
• Organizing Variables — Keep your variable list clean by removing unused ones. Use descriptive names that indicate the value’s purpose.
• History Management — Use history to quickly repeat recent requests. Open in new tab to compare before/after results.
• Security — Variables are stored locally in your browser. Don’t store sensitive credentials. Clear when switching computers.

Variable Tips

• Use descriptive names: targetDeviceId not id1
• Use Helpers to quickly save response values as variables
• Variables persist per-portal, so different portals have separate variable sets

---

Next Steps

Module Management Learn about editing module details and committing changes.
